NK R700 – Enterprise 5G Sub-6 + WiFi 7 FWA Gateway | NetKonnekt

Enterprise 5G Sub-6 + WiFi 7 FWA

NK R700
5G + WiFi 7
FWA Gateway

A 5G Sub-6 + WiFi 7 Fixed Wireless Access CPE gateway purpose-built for ISP, carrier & enterprise deployment — powered by the Qualcomm SDX72 platform with a Telit Cinterion 5G modem and best-in-class 6 GHz WiFi 7.

5G Sub-6 Peak DL

4.6Gbps

WiFi 7 Max Rate

5.8Gbps

Multi-Gig Ethernet

2× 2.5GbE

External Antennas

7× SMA

$699.00 15Add to cart

Datasheet (PDF)

Limit 2 units per online order — need a larger volume? Contact us for bulk pricing

TAA Compliant
Eligible for U.S. federal & government procurement

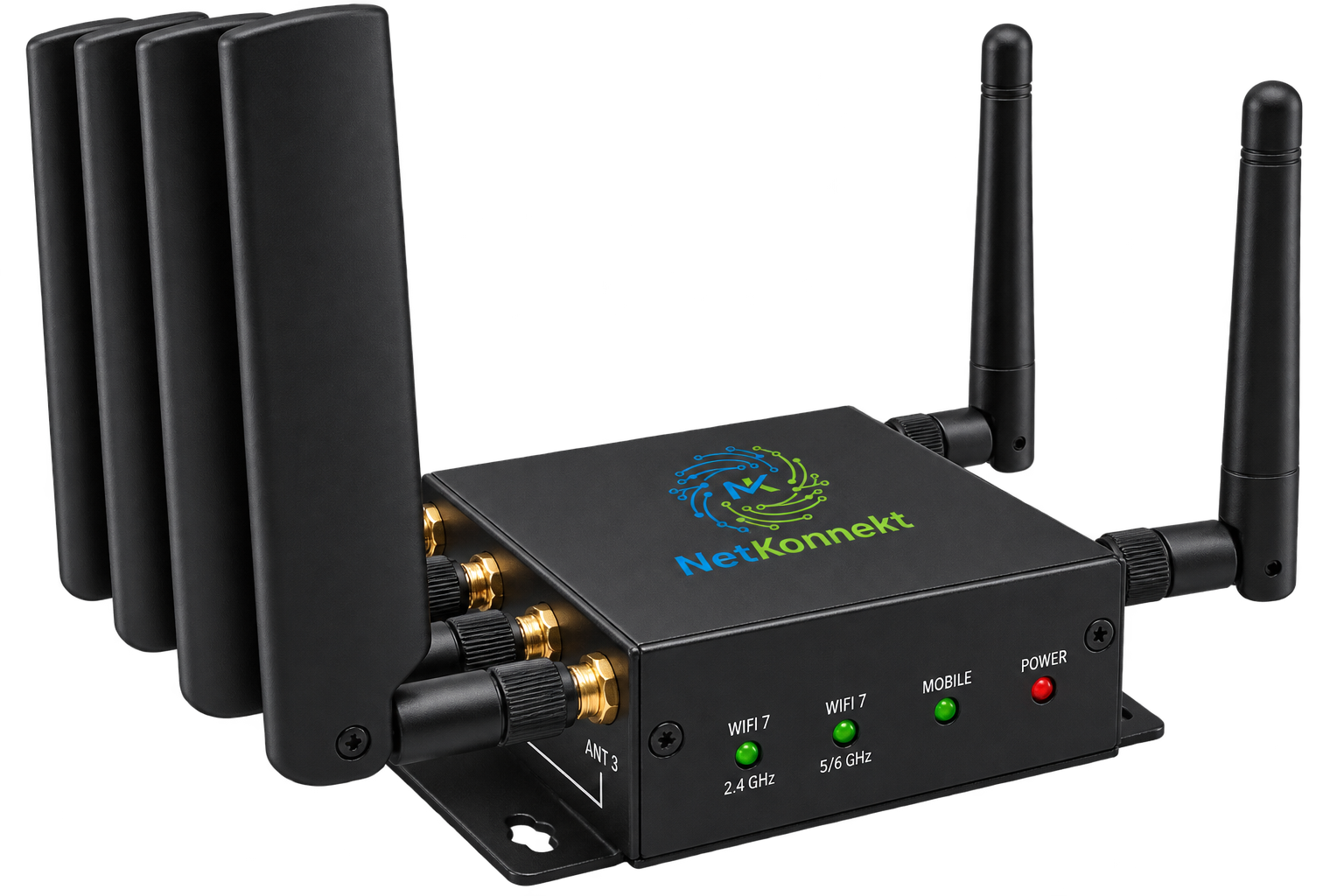

Front panel and status lights on the NK R700 enterprise 5G router

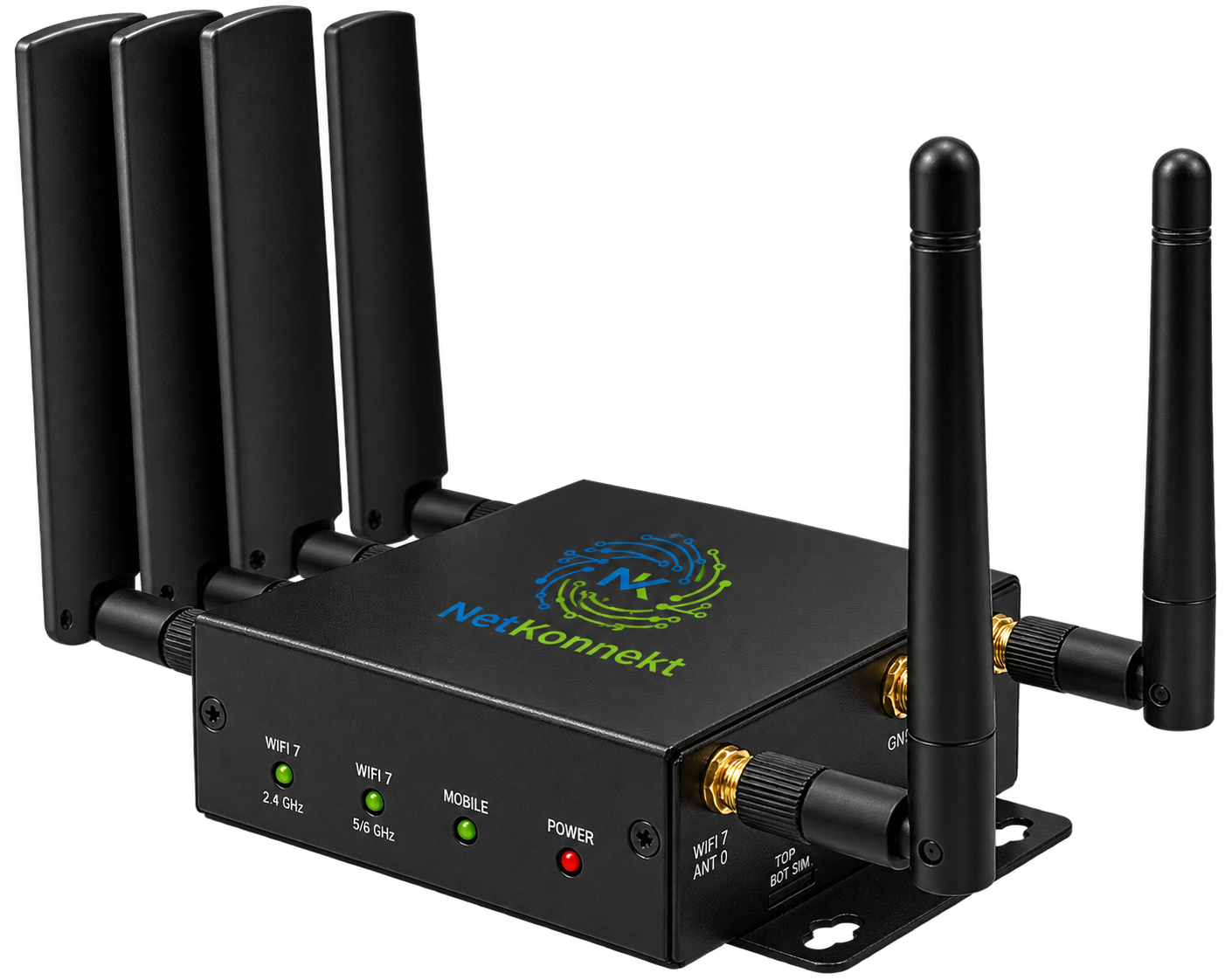

Front three-quarter view of the NK R700 enterprise 5G router

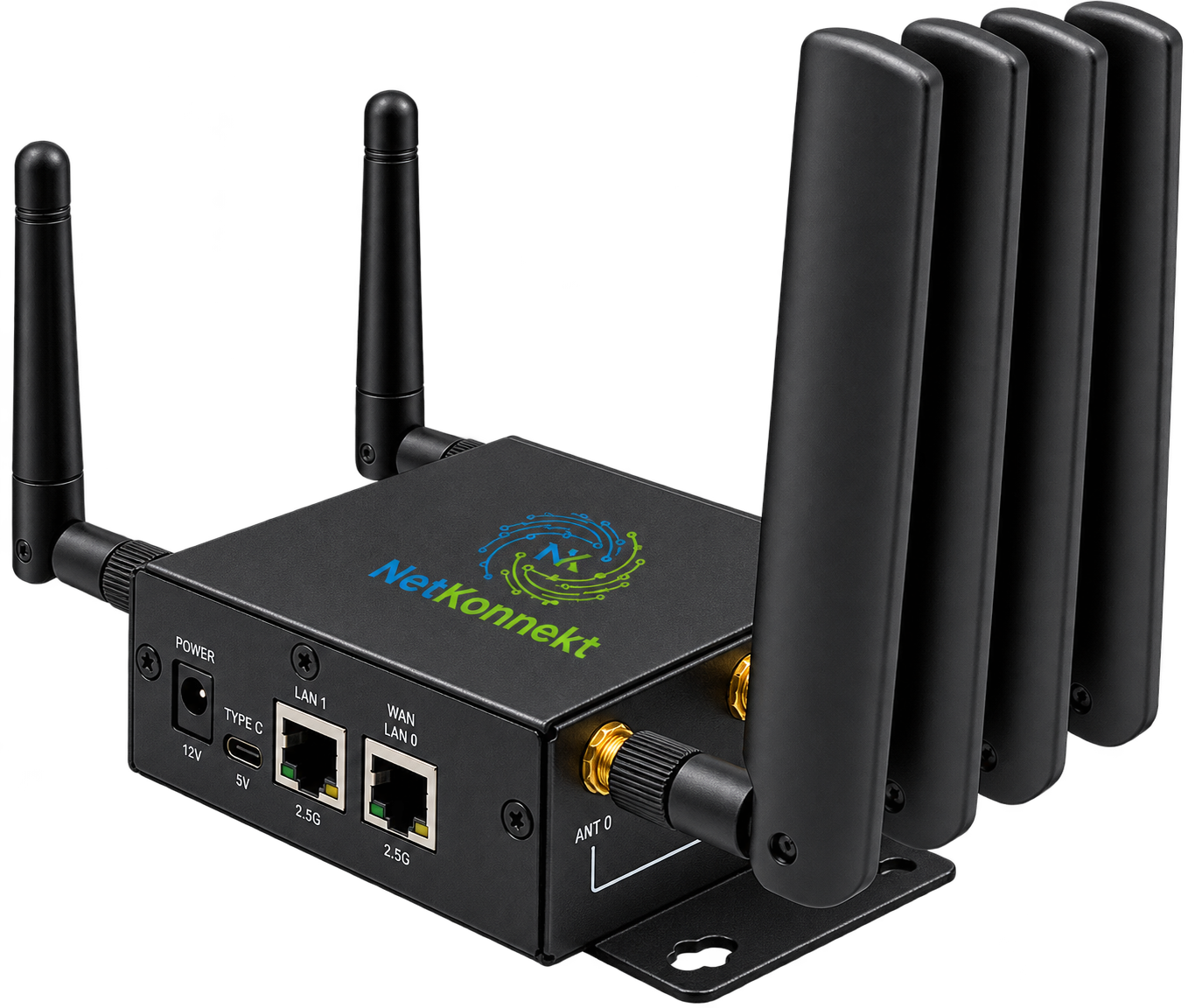

Rear three-quarter view of the NK R700 enterprise 5G router and antennas

4.6 Gbps

5G Sub-6 Peak DL

5.8 Gbps

WiFi 7 · 6 GHz

2× 2.5G

Multi-Gig Ethernet

7× SMA

External Antennas

SDX72

Qualcomm Chipset

Capabilities

Why the NK R700
Stands Apart

Best-in-class WiFi 7 with 6 GHz meets carrier-grade 5G Sub-6, packed into a semi-ruggedized metal chassis engineered for real-world FWA deployment.

Qualcomm SDX72 5G Sub-6

5G Sub-6 NR SA/NSA on the Qualcomm SDX72 platform with a Telit Cinterion modem — ~4.6 Gbps peak downlink, 4CA DL / 2CA UL, and 3GPP Release 17.

WiFi 7 with 6 GHz — Unique in Class

802.11be tri-band 2.4 / 5 / 6 GHz with Multi-Link Operation. Up to 5.8 Gbps and 128 concurrent clients — the only enterprise FWA CPE in its class with 6 GHz.

7× External SMA Antennas

4× high-gain cellular paddle antennas (5–7 dBi), 2× WiFi stub antennas, and 1× dedicated GNSS port — position for optimal signal anywhere.

Dual SIM Auto Failover

Two 4FF nano SIM slots with automatic or manual carrier failover, Private 5G network (n48/n78) support, and 5G SA network slicing for guaranteed uptime.

Redundant Dual Power

12V DC barrel plus USB-C 5V/5A redundant inputs in a metal + ABS composite chassis, IP32 rated for −20°C to +60°C operation.

Cloud Managed — NK DMS

TR-069 / CWMP with zero-touch provisioning, batch OTA firmware, IPsec / OpenVPN, SPI stateful firewall, and WPA3-Enterprise on OpenWRT / Linux.

Frequency Coverage

5G Sub-6 & LTE
Band Support

Broad 5G Sub-6 NR and LTE band coverage with 4×4 MIMO on all 5G/LTE bands, 2×2 MIMO uplink, and native Private Carrier Network (Bands n48/n78) support.

5G NR Sub-6 Bands

n2n5n7n12n13n14n25n26n29n30n38n41n48 (Private 5G)n66n70n71n77n78 (Private 5G)

Cellular Detail

5G NR & LTE Rel 17SA / NSA4CA DL · 2CA UL256-QAM UL/DL4×4 MIMO (5G/LTE)2×2 MIMO UplinkNetwork Slicing (5G SA)

4G LTE Bands

B2B4B5B7B12B13B14B17B25B26B29B30B41 (B38)B42B43B48B66B71

LTE Category

LTE Cat 20 DownlinkLTE Cat 18 Uplink256-QAM UL/DLDual Nano SIM (4FF)

GNSS Positioning (Optional)

Active antenna support on L1 and L5 frequencies

GPS GLONASS Galileo BeiDou QZSS

Wireless

WiFi 7 — Best-in-Class
6 GHz Performance

802.11be tri-band with Multi-Link Operation and 6 GHz — a combination unique among enterprise FWA CPE gateways in its class.

Standard & Max Throughput

WiFi 7 (802.11be) — 2×2 MIMO — Tri-Band 2.4 / 5 / 6 GHz
Up to 5.8 Gbps aggregate throughput with Multi-Link Operation (MLO)

6 GHz Band — Unique in Class

Tri-band 2.4 + 5 + 6 GHz
The only enterprise FWA CPE in its class shipping with a 6 GHz radio.

Capacity & Security

Up to 128 concurrent client devices
WPA2 / WPA3-Enterprise

Radio & Antennas

Multi-Link Operation (MLO)
2× external SMA stub antennas
2×2 MIMO configuration

Hardware

Ports & Interfaces

Dual 2.5 GbE, redundant power inputs, and seven external SMA antenna ports — every connection built for flexible FWA deployment.

Front ports and antennas on the NK R700 enterprise 5G router

2× 2.5 GbE RJ-45 — LAN 1 (2.5G) & WAN/LAN 0 (2.5G), Auto MDI/MDIX

USB-C Type-C port — power + data (modem diagnostic)

Dual redundant power: 12V/3A DC barrel + USB-C 5V/5A

Dual nano SIM (4FF) — SIM1 + SIM2 with auto carrier failover

4× cellular SMA paddle antennas (5–7 dBi high-gain)

2× WiFi SMA stub antennas + 1× GNSS dedicated SMA — 7 total

Button: System Reset

LED indicators: WiFi 7 2.4 GHz · WiFi 7 5/6 GHz · Mobile · Power

Full Datasheet

Complete Specifications

Every technical detail you need for procurement, integration planning, and deployment.

Cellular · 5G
Generation	5G Sub-6 NR (SA / NSA), 4G LTE fallback
Chipset	Qualcomm SDX72 · Telit Cinterion 5G modem
Peak Downlink	~4.6 Gbps (5G Sub-6)
Standard	3GPP 5G NR & LTE Release 17
Carrier Aggregation	4CA Downlink / 2CA Uplink
LTE Category	Cat 20 Downlink / Cat 18 Uplink · 256-QAM UL/DL
MIMO	4×4 MIMO on all 5G/LTE bands · 2×2 MIMO uplink
Private Carrier Networks	Supported — Band n48/n78
Network Slicing	Yes (5G SA)
SIM	Dual nano SIM (4FF) — SIM1 + SIM2, auto / manual failover
Cellular Antennas	4× external SMA paddle, high-gain 5–7 dBi
WiFi
Standard	WiFi 7 (802.11be)
Frequency Bands	Tri-band 2.4 GHz / 5 GHz / 6 GHz
Max Throughput	Up to 5.8 Gbps
MIMO	2×2 MIMO with Multi-Link Operation (MLO)
Security	WPA2 / WPA3-Enterprise
Max Clients	Up to 128 user devices
WiFi Antennas	2× external SMA stub
Interfaces & I/O
Ethernet	2× 2.5 GbE (RJ-45) — LAN 1 (2.5G) & WAN/LAN 0 (2.5G)
USB	USB-C — power + data (modem diagnostic)
Antenna Ports	7× SMA total — 4× cellular paddle, 2× WiFi stub, 1× GNSS
Reset	Hardware reset button
LED Indicators	WiFi 7 2.4 GHz · WiFi 7 5/6 GHz · Mobile · Power
System & Management
Platform	OpenWRT / Linux
Memory / Storage	8 GB DDR4 RAM / 8 GB eMMC Flash
Management	Web GUI · TR-069 / CWMP · NK DMS · NB Swagger API
Provisioning	Zero-touch (ZTP) · Batch OTA firmware update
Security	IPsecOpenVPNSPI Stateful FirewallWPA3-EnterpriseNAT / Router
Power & Physical
Power Input	Dual redundant — 12V/3A DC barrel + USB-C 5V/5A
Enclosure	Metal chassis + ABS composite (semi-ruggedized)
Mounting	Desktop + wall mount
Dimensions	90 mm × 90 mm × 60 mm
Weight	~500 g
IP Rating	IP32
Operating Temp	−20°C to +60°C
Compliance	FCC · TAA Compliant
GNSS (Optional)
Systems	GPS, GLONASS, Galileo, BeiDou, QZSS
Antenna	Active antenna, L1 & L5 frequencies · dedicated SMA port

Documentation

Download the
NK R700 Documentation

Get the complete NK R700 technical datasheet and the condensed one-page spec sheet as PDFs — everything you need for evaluation, RFPs and deployment planning.

NK R700 Technical Datasheet

Full technical datasheet — complete 5G Sub-6 NR and WiFi 7 specifications, antenna and port layout, dual-SIM failover, dual power options and competitive positioning.

PDF · 2 pages · 4.6 MB

NK R700 One-Page Spec Sheet

Condensed one-pager — key features, 5G NR and LTE band lists, MIMO, SIM, power, GNSS, dimensions and management, all at a glance.

PDF · 1 page · 403 KB

Specifications are subject to change without notice. Performance figures are typical / module-rated values and may vary with network conditions and carrier configuration. Need something else? Contact our team.
