NK C100 – 5G WiFi 7 Home Router | NetKonnekt
Qualcomm X72 · 5G + WiFi 7

NK C100
5G + WiFi 7
Home Router

Powered by the Qualcomm X72 chipset, the NK C100 delivers superior 5G performance up to 4.1 Gbps and next-generation WiFi 7 with 5000 Mbps wireless speeds — all in a sleek plug-and-play design.

5G Download
4.1Gbps
5G Upload
2Gbps
WiFi 7 Max Rate
5000Mbps
WAN Port
2.5Gbps

Original price was: $300.00.Current price is: $290.00. 15Add to cart

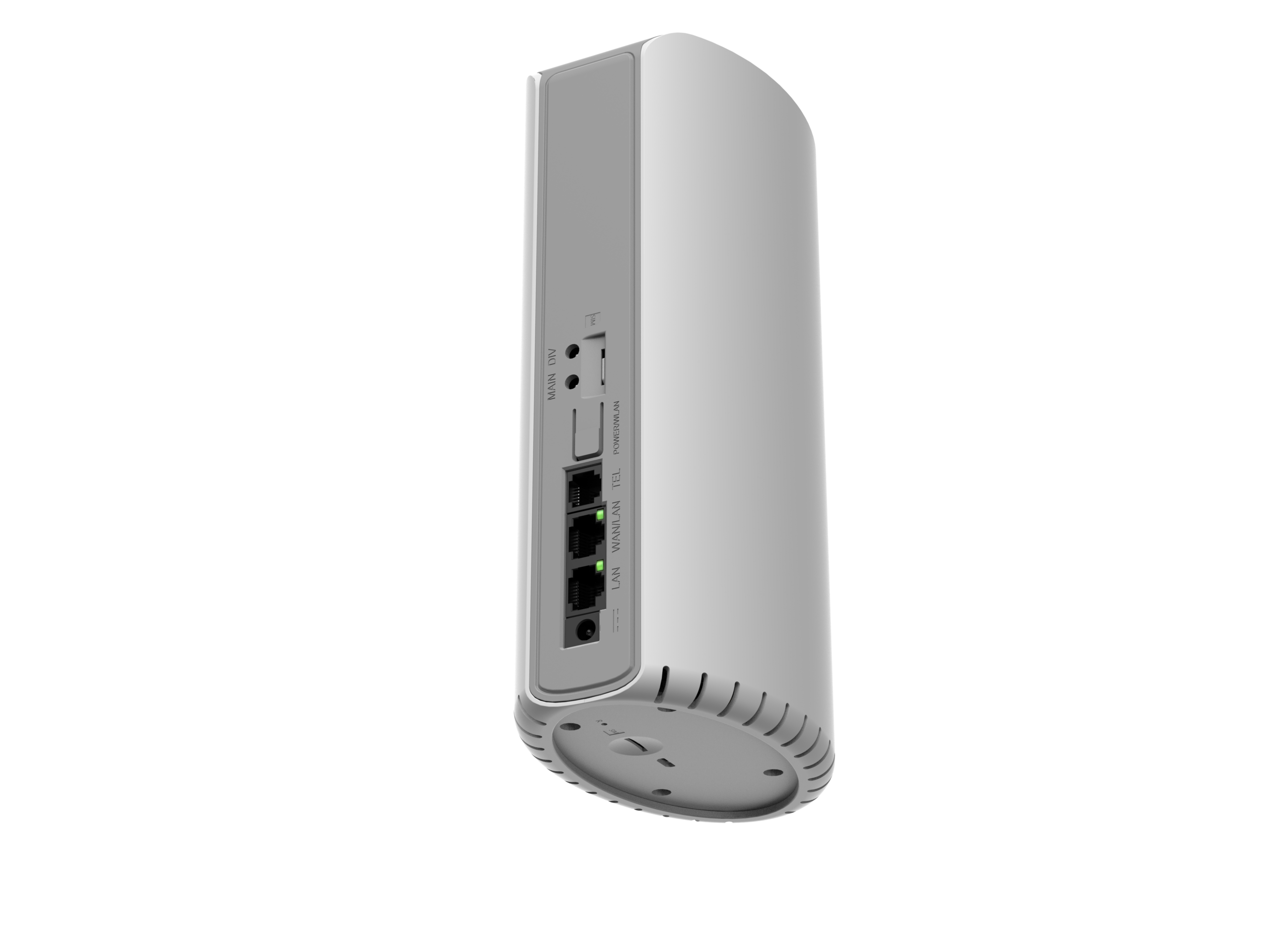

NK C100 Front View

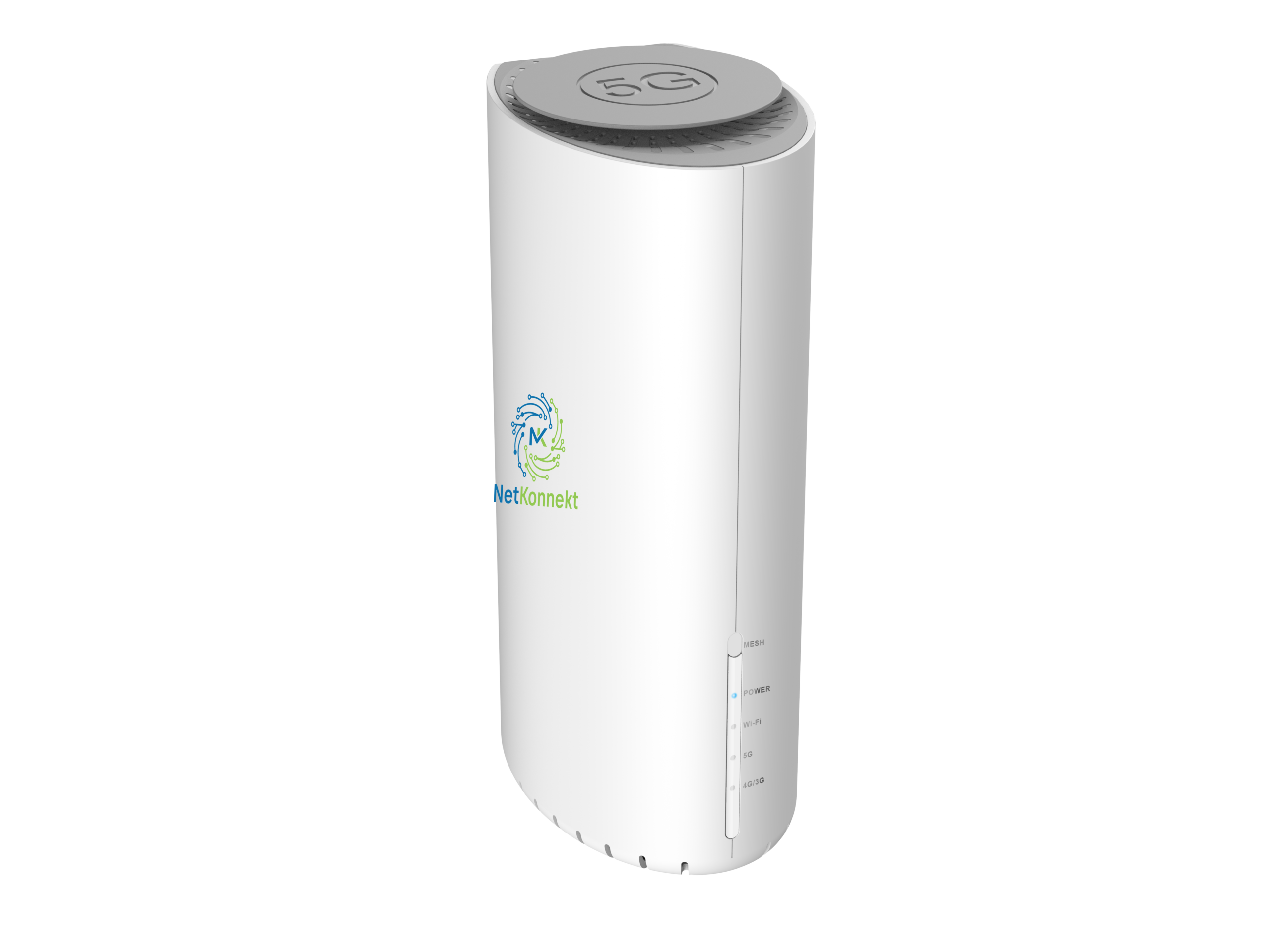

NK C100 Side View
NK C100 Back View
View 1
View 2
View 3
4.1 Gbps
5G DL Max
5000 Mbps
WiFi 7 Speed
X72
Qualcomm Chip
NSA & SA
5G Modes
2.5 Gbps
WAN Port
Highlights

Why Choose the NK C100?

Enterprise-grade 5G performance in a consumer-friendly form factor — plug in, connect, and experience next-generation speeds instantly.

Superior 5G — Up to 4.1 Gbps
Supports 5G NSA & SA modes plus 4G-LTE fallback. With ENDC Sub-6G DL 6×CA LTE + 2×CA NR aggregation, you get maximum throughput in every environment.
WiFi 7 — 5000 Mbps Dual Band
802.11be with MIMO 4×4, 4K-QAM modulation, Multi-Link Operation (MLO) and Easy Mesh support. The fastest home Wi-Fi standard available today.
SIM Card Plug & Play
Insert your Nano SIM into either of the two 4FF USIM slots and be online in seconds — no complex configuration or technician required.
NFC One-Touch Connection
Share your network instantly by tapping an NFC-enabled device to the router. Effortless guest onboarding without typing long passwords.
4G MIMO DL 4×4
Advanced 4×4 MIMO on 4G LTE downlink and 2×2 on uplink ensures strong, stable connections even in areas with moderate signal conditions.
RJ11 Voice Port
Built-in RJ11 port supports traditional landline phones, making the NK C100 a true all-in-one home gateway solution for voice and data.
Superior 5G
Up to 4.1 Gbps DL
Dual Band WiFi 7
5000 Mbps wireless
SIM Plug & Play
Dual 4FF Nano SIM
NFC Connect
One-touch pairing
Frequency Coverage

Band Support

Comprehensive 5G NR Sub-6GHz, LTE, and ENDC carrier aggregation coverage for North America and global markets.

5G NR Bands
n2n5n12n13n14n25n26n29n30n66n7jn4jn48n77n78n29
4G LTE Bands
B2B4B5B12BJ3B14B25B26B29B30B66B7B41B42B43B48
ENDC Sub-6G Carrier Aggregation
DL: 6×CA LTE + 2×CA NR DL: 6×CA LTE + 1×CA NR UL: 1×CA LTE + 1×CA NR
Network Modes
Automatically selects the best available network technology
5G NSA 5G SA 4G LTE ENDC
Wireless

WiFi 7 — The Fastest
Home Wi-Fi Standard

802.11be brings 4K-QAM, Multi-Link Operation and MIMO 4×4 for dramatically faster, lower-latency wireless across your entire home.

Standard & Throughput
802.11be / ax / ac / n / a — MIMO 4×4
Up to 5000 Mbps combined dual-band wireless throughput
Modulation
4096-QAM (4K-QAM)
Backwards compatible with 1024-QAM, 256-QAM
MIMO Configuration
4×4 MIMO (Downlink)
Dual Band Simultaneous
Advanced Features
Multi-Link Operation (MLO)
Easy Mesh Support
802.11be / ax / ac / n / a
Hardware

Ports & Interfaces

Every connection you need for a complete home gateway — from multi-gig ethernet and dual SIM to RJ11 voice.

2× USIM card slots (4FF Nano)
1× WAN/LAN 2.5 Gbps Ethernet port
1× LAN 1 Gbps Ethernet port
1× RJ11 voice/phone port
1× USB port (debug/diagnostic)
NFC one-touch device connection
Power Input: 12V DC, 2A
Chipset: Qualcomm X72
Full Datasheet

Complete Specifications

Every technical detail you need for procurement and compatibility planning.

Platform
ChipsetQualcomm X72
Cellular Performance
Network Mode5G NSA, 5G SA, 4G LTE
5G Throughput4 Gbps DL / 2 Gbps UL
Max 5G SpeedUp to 4.1 Gbps (DL)
4G MIMO (DL)MIMO 4×4
4G MIMO (UL)MIMO 2×2
WiFi
Standard802.11be / ax / ac / n / a (WiFi 7)
Max Speed5000 Mbps
MIMO4×4 (Downlink)
Modulation4096-QAM (4K-QAM)
Interfaces
SIM Slots2× 4FF Nano USIM
WAN/LAN1× 2.5 Gbps WAN/LAN Ethernet
LAN1× 1 Gbps LAN Ethernet
Voice1× RJ11 phone port

Get Started

Ready to Experience
the NK C100?

Talk to our team for pricing, availability, and deployment support.

Contact Sales Browse All Products
