4G CAT6 MiFi + Power Bank
NK M200
4G Hotspot &
Power Bank

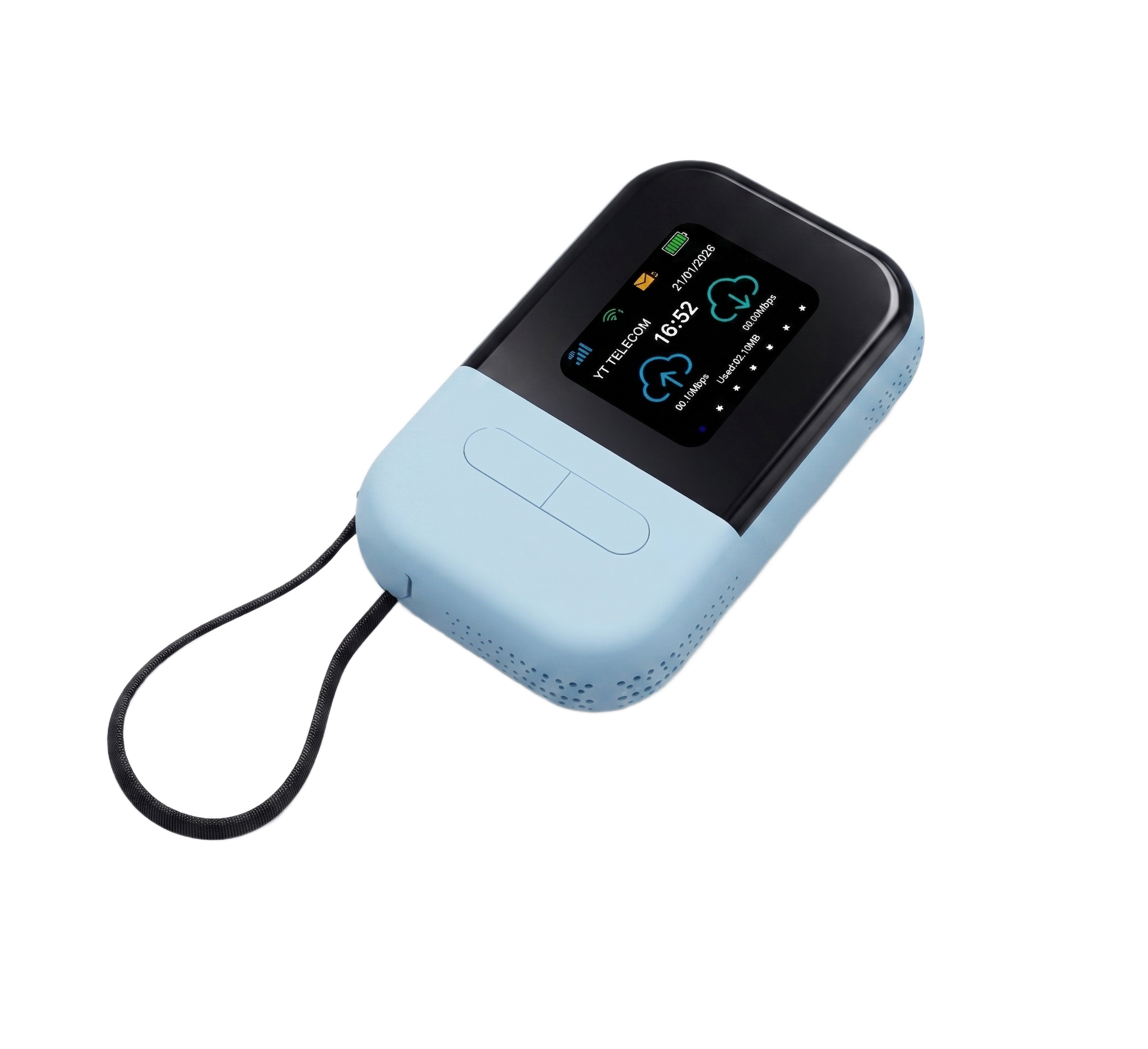

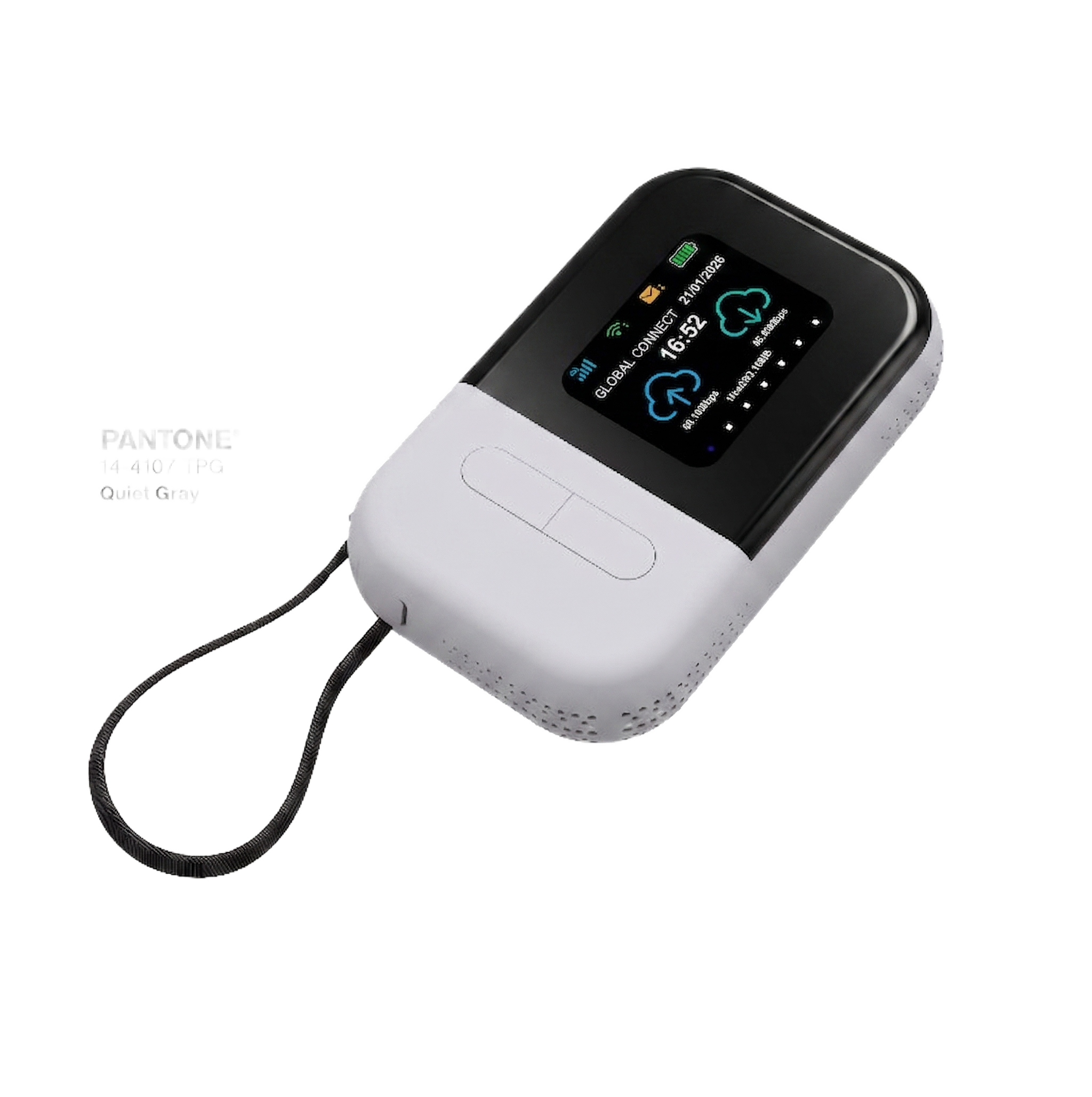

The NK M200 combines a powerful 4G CAT6 MiFi hotspot with a massive 10,000mAh built-in power bank — stay connected and keep your devices charged wherever you go.
300
Mbps DL
600
Mbps Wi-Fi
10K
mAh
32
Users
$189.00 15Add to cart
$189.00 15Add to cart
LTE CAT6
Network
ASR1828
Chipset
10,000 mAh
Power Bank
Why NK M200
Hotspot + Power Bank.
4G LTE CAT6 Speed
FDD 300 Mbps download and 50 Mbps upload with 2CC Carrier Aggregation.
10,000mAh Power Bank
Massive built-in battery doubles as a power bank for all your devices.
Wi-Fi 6 Support
Next-generation Wi-Fi 6 delivers efficient AX600 Mbps throughput for up to 32 users.
Technical Details
Full Specifications
| Category | Specification |
|---|---|
| Model | IH-PM06 |
| Form Factor | 4G CAT6 MiFi with power bank |
| Technical Standard | Compatible with WCDMA, FDD-LTE, TDD-LTE, Wi-Fi 6 (IEEE 802.11 b/g/n/a/ac/ax), AX600 Mbps |
| Network Frequency | 4G: B2/4/5/7/12/13/14/25/26/29/30/66/71, B41/48; 3G: B2/4/5/8 |
| Wi-Fi | Wi-Fi 6, IEEE 802.11 b/g/n/a/ac/ax, DBDC, AX600 Mbps |
| Maximum Data Throughput | LTE CAT6 LTE-FDD/TDD/CA; FDD-LTE 300 Mbps DL / 50 Mbps UL; UMTS up to 42 Mbps DL / 5.76 Mbps UL; Wi-Fi 2.4 GHz 286 Mbps, 5 GHz 286 Mbps |
| BB Chipset | ASR1828 |
| Wi-Fi Chipset | AIC8800D40L + AIC8800DW |
| Flash | 1Gb |
| Power Input | Type-C input 5V/3A max |
| Power Output | USB 2.0: 5V/2.0A, Type-C: 5V/2.0A, total 5V/2.0A max |
| SIM | Nano SIM / vSIM / eSIM (optional) |
| Battery | 10000mAh polymer battery (non-detachable) |
| Charging Time | < 6 hours |
| Working Time | 30 hours (depending on network) |
| Standby Time | > 300 hours |
| LCD Screen | 2.4-inch TFT LCD (non-touch screen) |
| Input Port | 1 x Type-C port for USB tethering by RNDIS/ECM, charging, and debugging |
| Output Port | 1 x USB 2.0 port and 1 x Type-C charging cable (hanging rope style) |
| Antenna | Built-in 4G main/sub and Wi-Fi antennas; 1 x TS-9 RF connector (antenna not included) |
| Buttons | Screen menu select key, power on/off, reset pinhole |
| ESD Protection | ESD protection circuit; contact ±4KV, air ±8KV |
| UI | Web-UI |
| Languages | English, Spanish |
| System | Linux |
| Supported OS | Up to Windows 11, macOS, Android |
| Software Update | Local Update / FOTA |
| Wi-Fi Mode | AP |
| Wi-Fi Security | WPA/WPA2/WPA3-SAE Personal, MFP |
| SMS | Support |
| USSD | Support |
| APN Setting | Support |
| IPv4 & IPv6 | Support |
| Data Statistics | Support |
| Certification | TBD |
| Operating Temperature | Normal: -10°C to +55°C |
